AP Series
Reliable case-forming in sizes ranging from small to large.
Automated Packaging System (Horizontal)
Wrapping Specifications
AP501L（R）

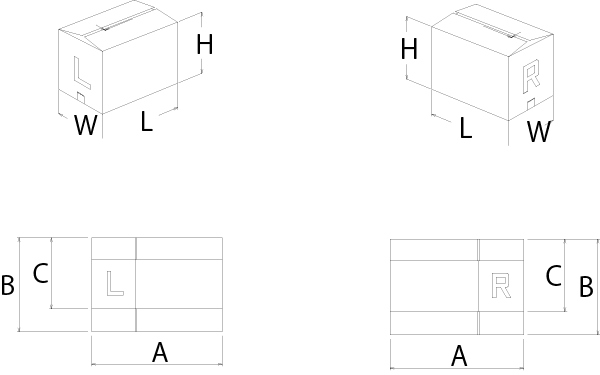

| Sheet size for box-making |
LMIN 200mmMAX 350mm WMIN 150mmMAX 250mm HMIN 80mmMAX 200mm AMIN 350mmMAX 600mm BMIN 250mmMAX 400mm CMIN 180mmMAX 300mm Dimensions Diagram  |
|---|---|
| Box making capacity | 15Cases / min |
| Number of sheets accumulated | 80〜120sheets（Single 5m / m） |
| Machine dimensions | a 1500mm b 1400mm c 1650mm d 700mm
Dimensions Diagram  |
| Capacitance | 200V 0.4KVA |
| Air consumption | 100〜200NLiters / min |
| Air pressure | 0.4MPa（5kg / cm2） |
AP701L（R）
| Sheet size for box-making |
LMIN 250mmMAX 500mm WMIN 180mmMAX 350mm HMIN 100mmMAX 300mm AMIN 470mmMAX 800mm BMIN 300mmMAX 600mm CMIN 200mmMAX 450mm Dimensions Diagram |
|---|---|
| Box making capacity | 9Cases / min |
| Number of sheets accumulated | 80〜100sheets（Single 5m / m） |
| Machine dimensions | a 1700mm b 1700mm c 1650mm d 700mm
Dimensions Diagram |
| Capacitance | 200V 0.4KVA |
| Air consumption | 100〜200NLiters / min |
| Air pressure | 0.49MPa（5kg / cm2） |
AP901L（R）
| Sheet size for box-making |
LMIN 250mmMAX 600mm WMIN 200mmMAX 400mm HMIN 150mmMAX 400mm AMIN 450mmMAX 1000mm BMIN 350mmMAX 800mm CMIN 250mmMAX 600mm Dimensions Diagram |
|---|---|
| Box making capacity | 6〜9Cases / min |
| Number of sheets accumulated | 80〜100sheets（Single 5m / m） |
| Machine dimensions | a 1900mm b 2050mm c 1700mm d 700mm
Dimensions Diagram |
| Capacitance | 0.4KVA |
| Air consumption | 100〜200NLiters / min |
| Air pressure | 0.49MPa（5kg / cm2） |
Options
Modification for special cardboard size, Safety cover, Row film remaining detection, Longer magazine, No-tape detection, PC coder, tab folding.
*Paper dust prevention, random type case former.
*Paper dust prevention, random type case former.
